Electric Thrusters – 1002HL – 14000XLR Series

The 1002 Series Electric Propulsion Systems provide the ultimate in reliability and efficiency. The Electric Motor efficiency is over 90%. The 1002 Electric Thruster produces a high level of thrust in the forward direction and 90+% in reverse operation.

– The venturi shape of the 1002 Thruster is ideally suited for Electric Drive because the Prop Turns Faster for the Same Power

– Streamlined Brushless DC, oil filled and pressure balanced direct drive electric submersible motors. Capable of going to full ocean depth.

– Customized Solutions/Systems for R & D Programs or Prototype Vehicles, small or large. These electric thrusters can be precision matched to each application.

– Independently Tested – Ready-to-Purchase

The 1002 series electric thrusters are offered with a matching stand-alone motor controller option housed in a separate one atmosphere bottle.

– The electric motors have a 3 tier seal system that includes Silicone Carbide Face Shaft Seals. The motors also incorporate a bearing system that is optimized for long lasting quiet operation.

– Much Faster Response Time, Propeller only 9.25″ dia. of Anodized Heat Treated Aluminum Alloy.

– Heavy Duty Construction, All Anodized Aluminum and Stainless Steel.

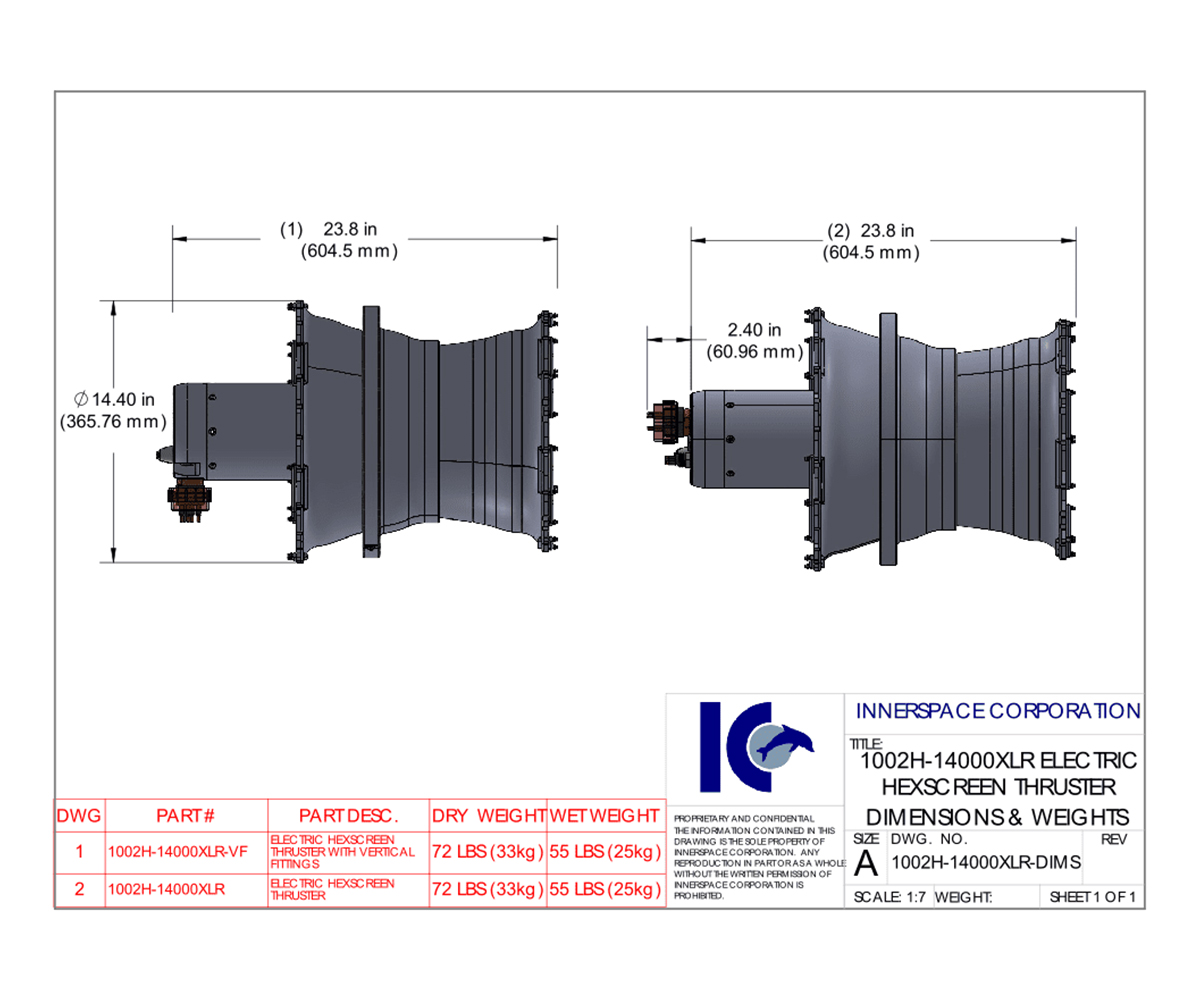

Also available is the 1002HL Hexscreen Electric Thruster: Protected by a unique honeycomb screen that is hydrodynamically designed to eliminate/recover 80% of the torque reaction, reduce cavitation and provide an overall efficiency increase that balances out any losses typically associated with protective screens.
