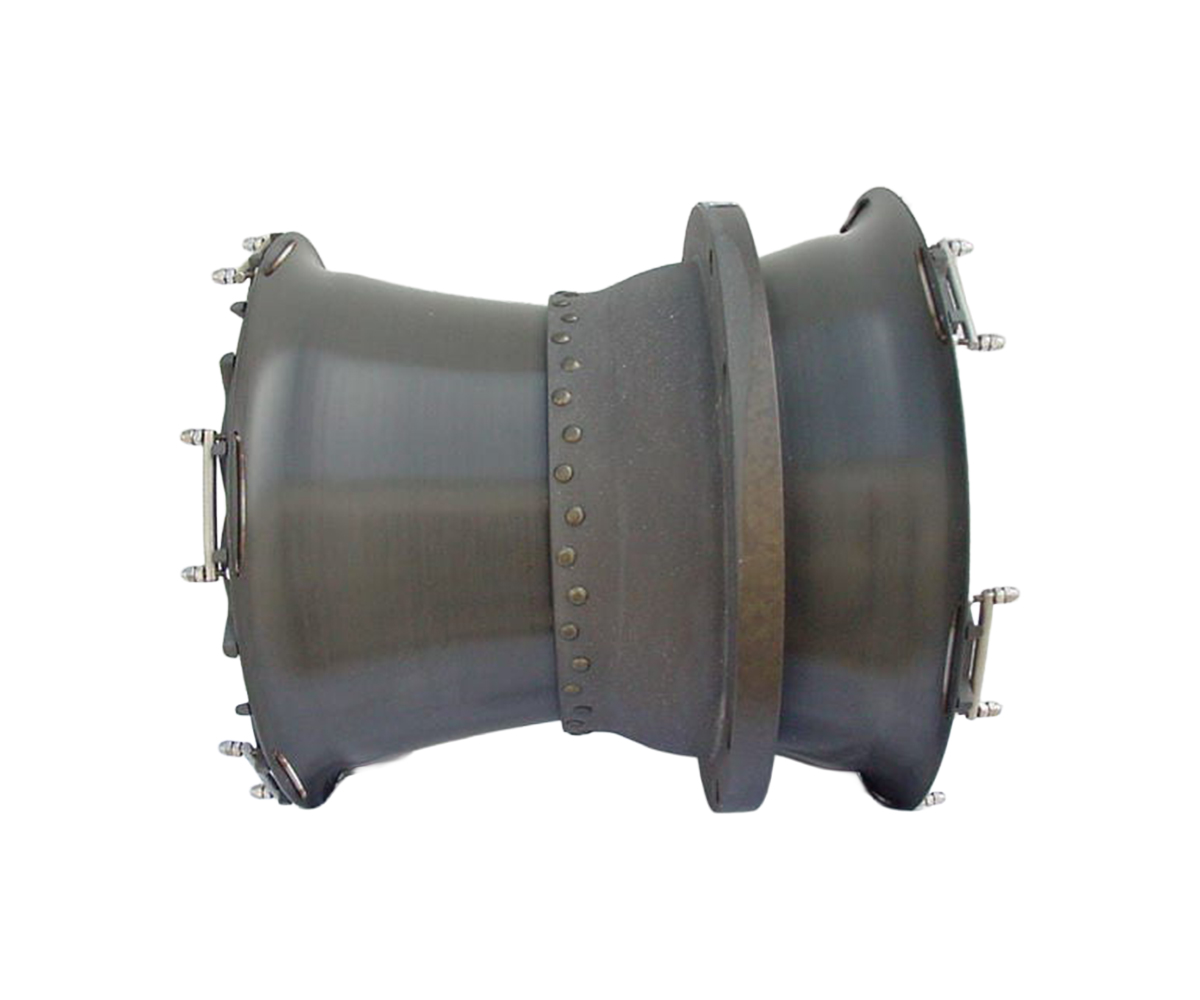

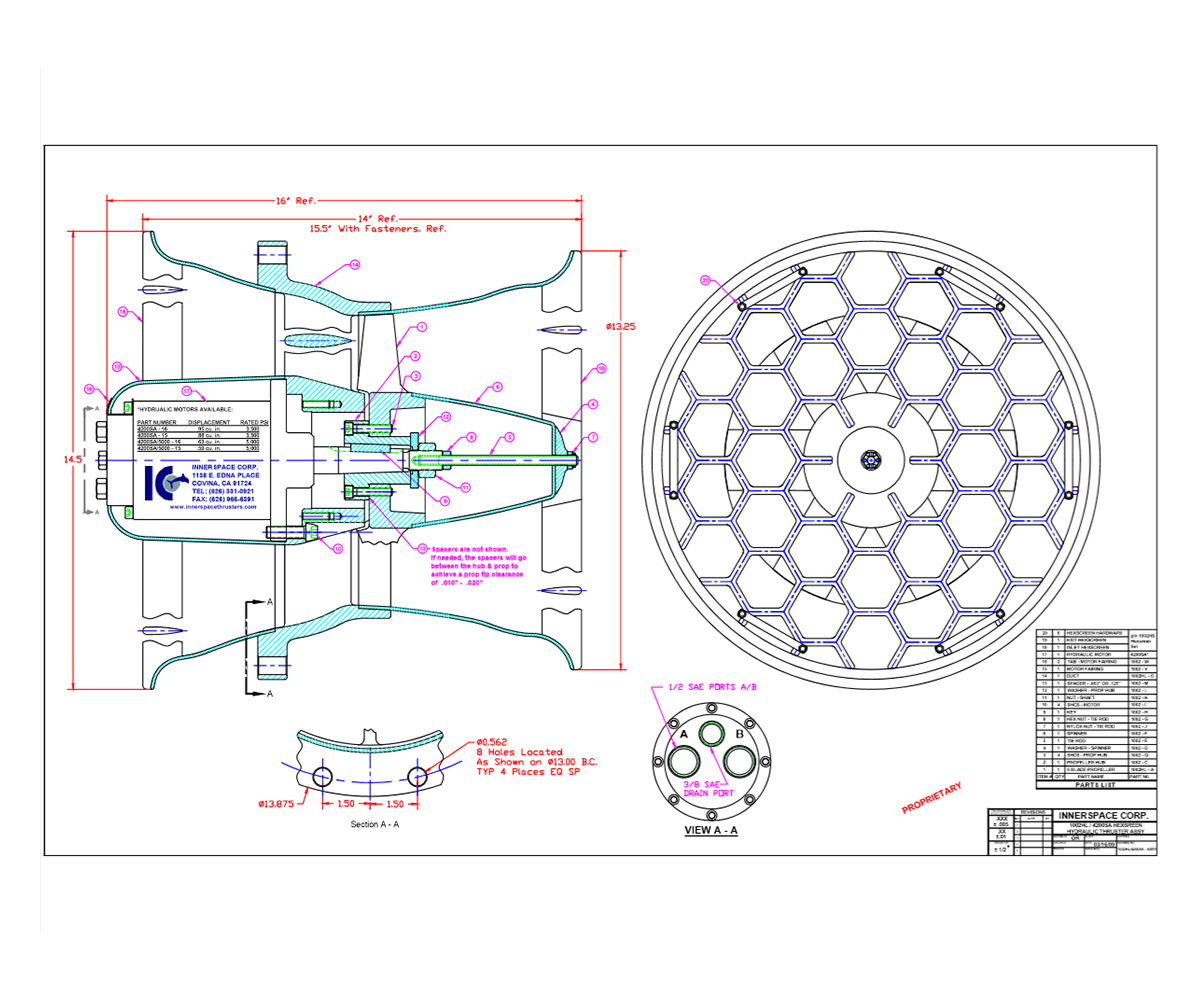

Hydraulic Thrusters – 1002HL Honeycomb

– Reduced Cavitation, Optimized for Both Shallow and Deep Running.

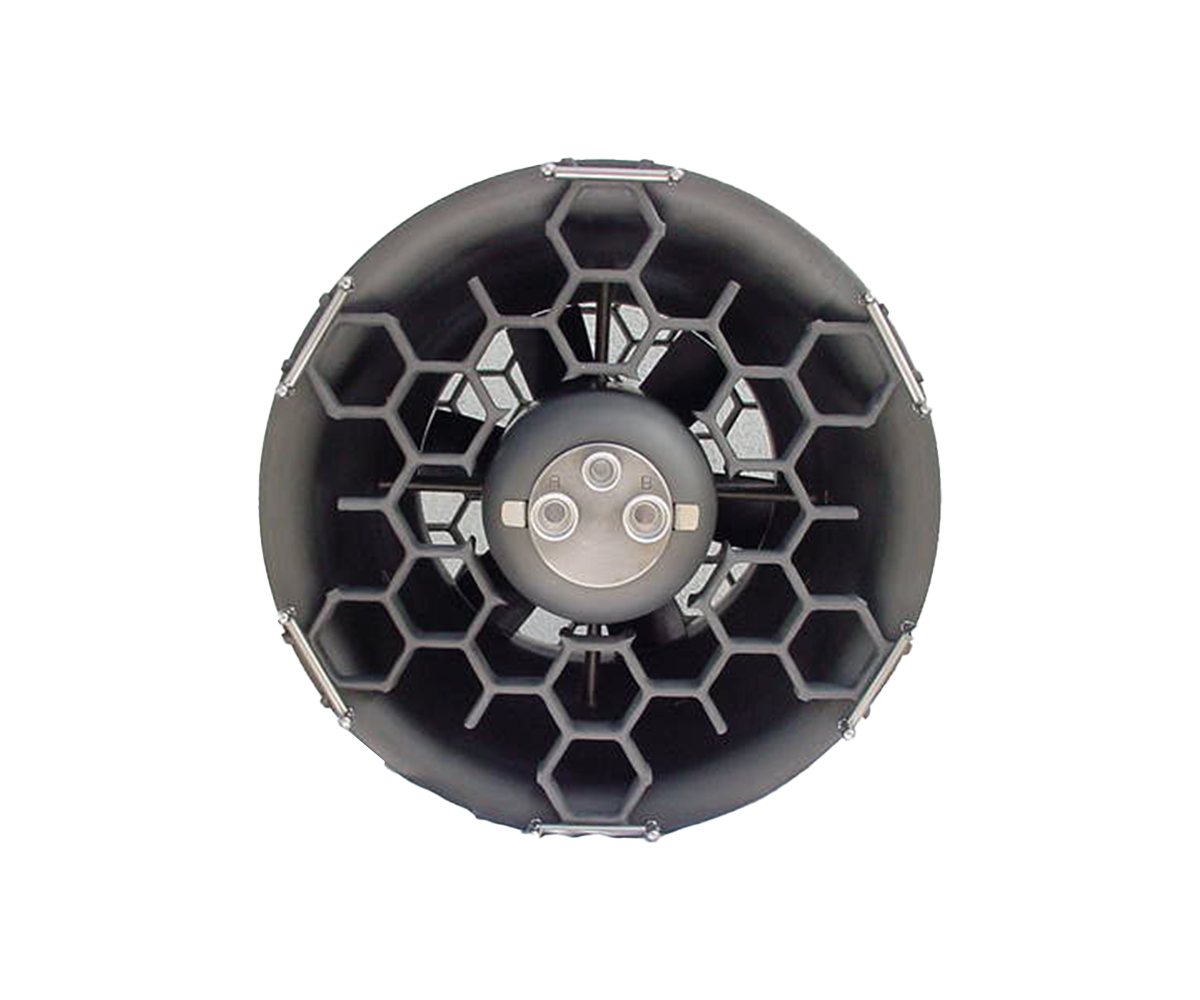

– Honeycomb Screens* of Hydrodynamic Design Protect Divers, Marine Life and the Prop.

– Honeycomb Screens** Which Cancel 80% Of The Prop Torque While Reclaiming Thrust By Reducing Jet Whirl.

– Custom Propellers with Ultra High Thrust To Torque Ratio.

– Propellers Have Lenticular Blade Sections with No Camber for Symmetrical Ahead – Astern Operation.

– The 4200SA Hydraulic Motor Has a Stainless Steel Casing and Shaft.

– The Motor has Retrofittable Silicon-Carbide Shaft Face Seals With Indefinite Life in Sand.

– The Seals Can’t Be Blown Out by Case Pressure Surges.

– THE MOTOR IS COVERED BY A STREAMLINED FAIRING TO REDUCE FLOW BLOCKAGE AND DRAG.

– The Motor Requires No Separate Adapter Shaft, Bearings, Compensation Chamber, etc..

– The Thruster is Ideally Suited for Direct Electric Drive. ( Greater RPM )

– 1000’s of Hours of Trouble Free Operation With The 1002HL Thruster.

* Patent numbers 4,726,183 , 5,275,535 and 6,152,793

THRUSTERS RANGING IN SIZES TO 8,000 lbsf BOLLARD PULL
