Hydraulic Thrusters – H106 4200SA

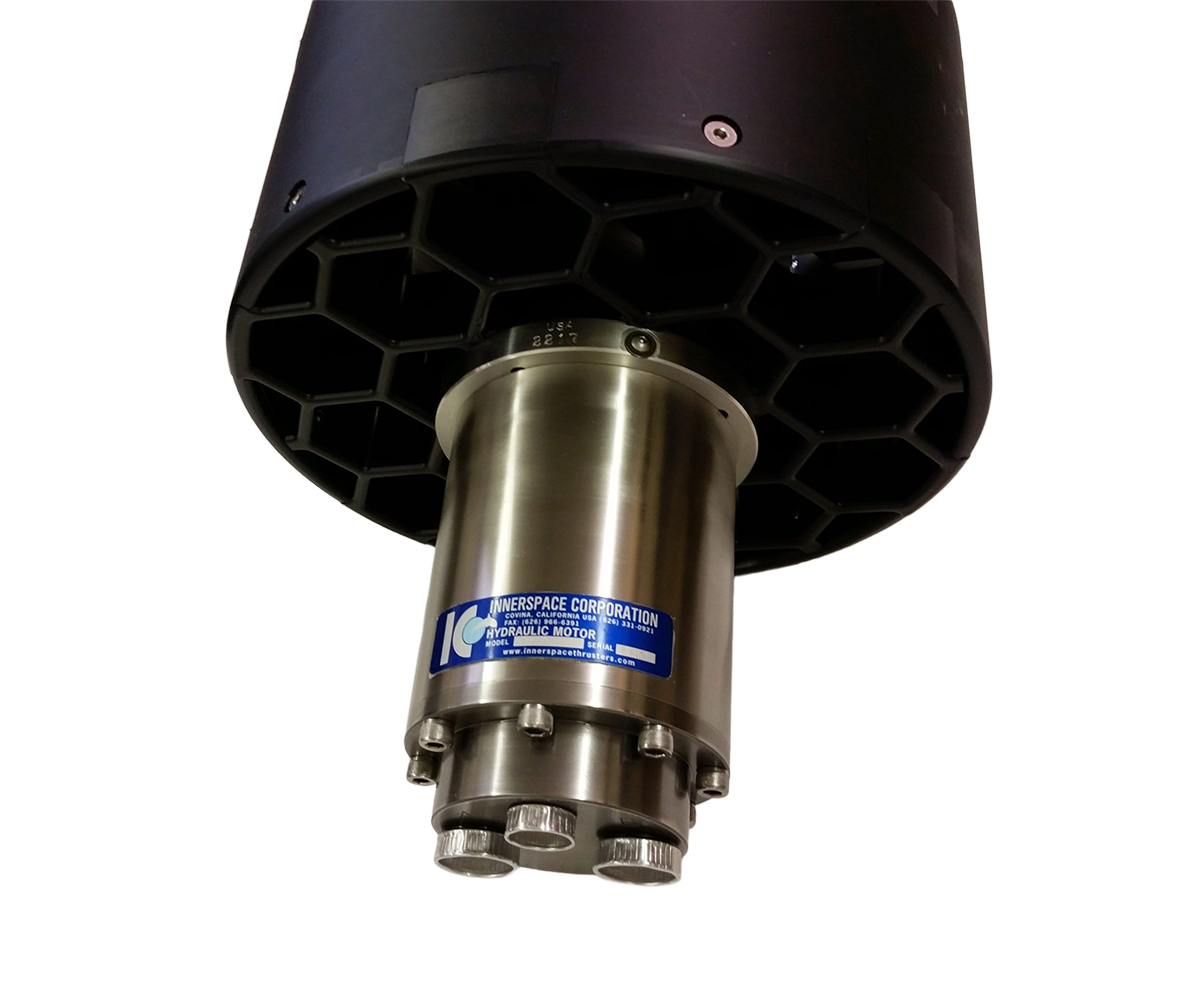

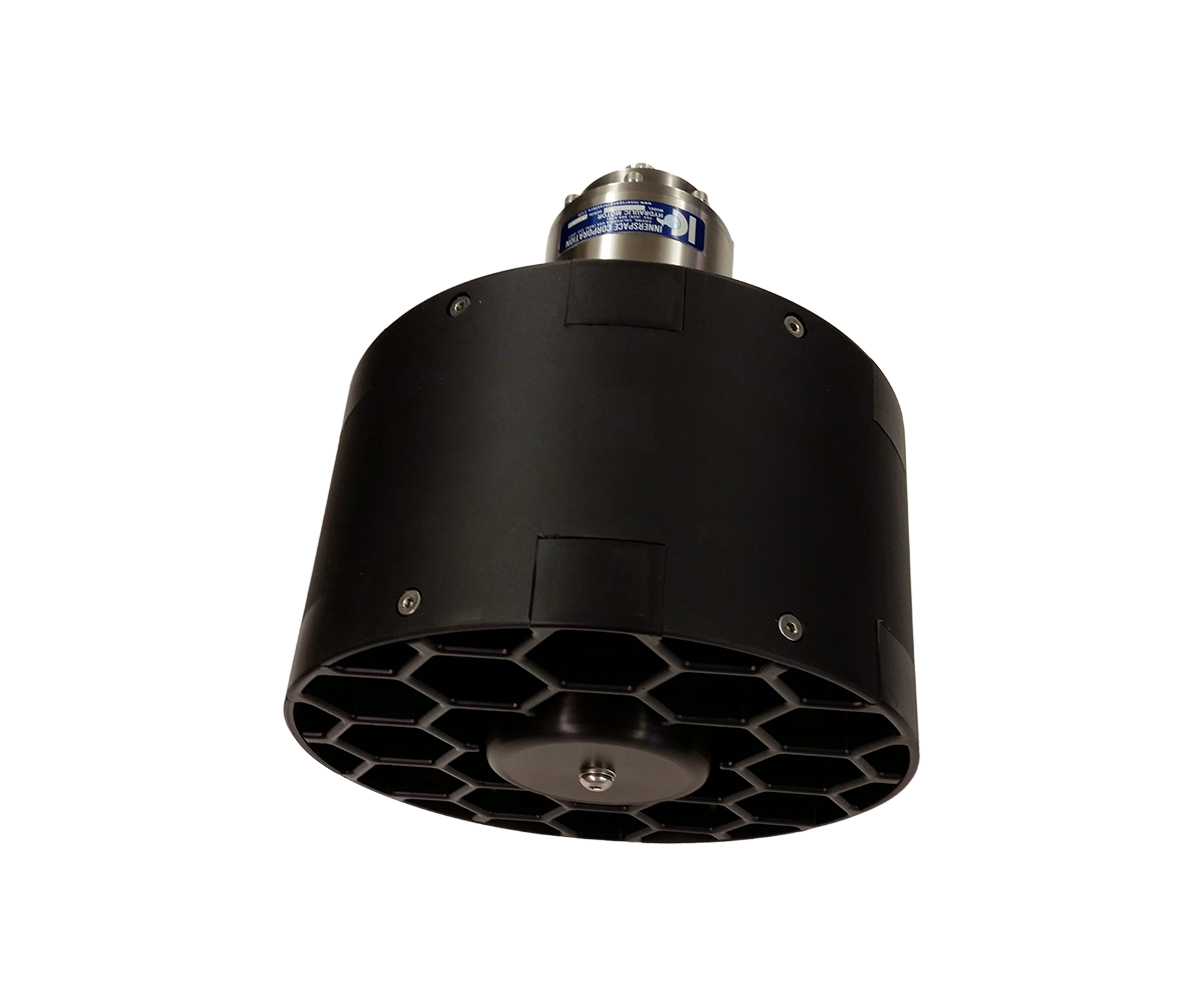

The H106 Hydraulic Thruster
Enquire
Contact sales team

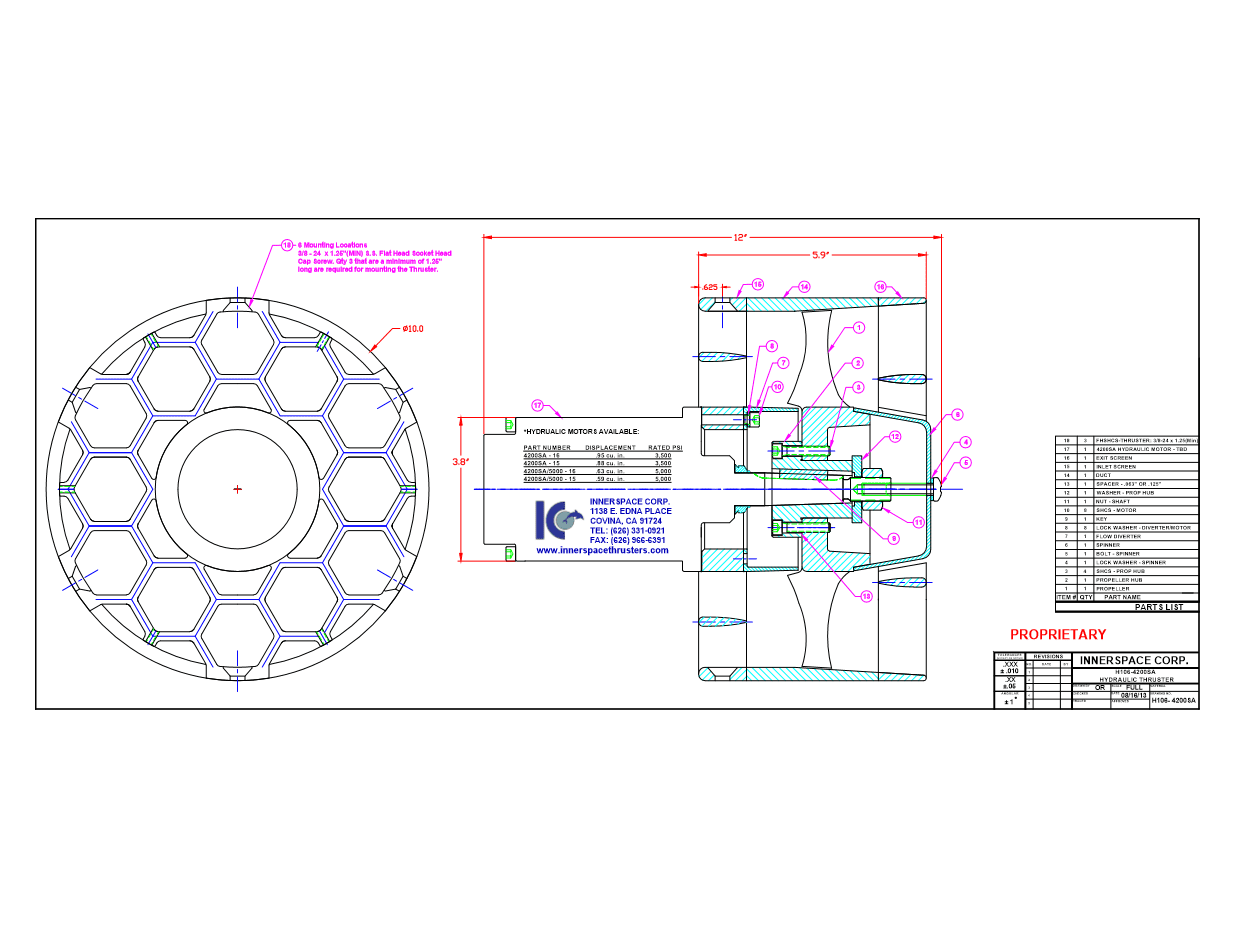

– Compact and light weight. Only 10” Outer Diameter x 12” Long & 20Lbs Dry Weight
– Uses the same proven 4200SA Series Hydraulic Motors
– Reduces Cavitation, Vibration and Downtime.
– Much Lower Torque Reaction on the Vehicle ( Low Displacement Motors & Hexcsreens )
– Eliminates 80% of the Torque Reaction While Reclaiming Thrust by Reducing the Jet Whirl.
– The Hydrodynamic Design of the Screen Extracts Energy from the Twisting of the Flow thereby Reducing Its Own Drag.
– The Motor Requires No Separate Adapter Shaft, Bearings, Compensation Chamber, etc..
ΔP
207 bar / 3,000 psi
Static Thrust
195 kgf / 430 lbsf
RPM
2,200
Oil Rate
72 l/m / 19 gpm
Oil Power
17.1 kw / 23 hp
